FNIRSI® SG-003A Signal Generator
- Signals displayed as physical or engineering values, corresponding linearly.
- Four preset groups for quick output adjustment.
- Input signal converted to output, changeable between physical quantities.
- Automatically adjusts output size based on parameters, with three modes.

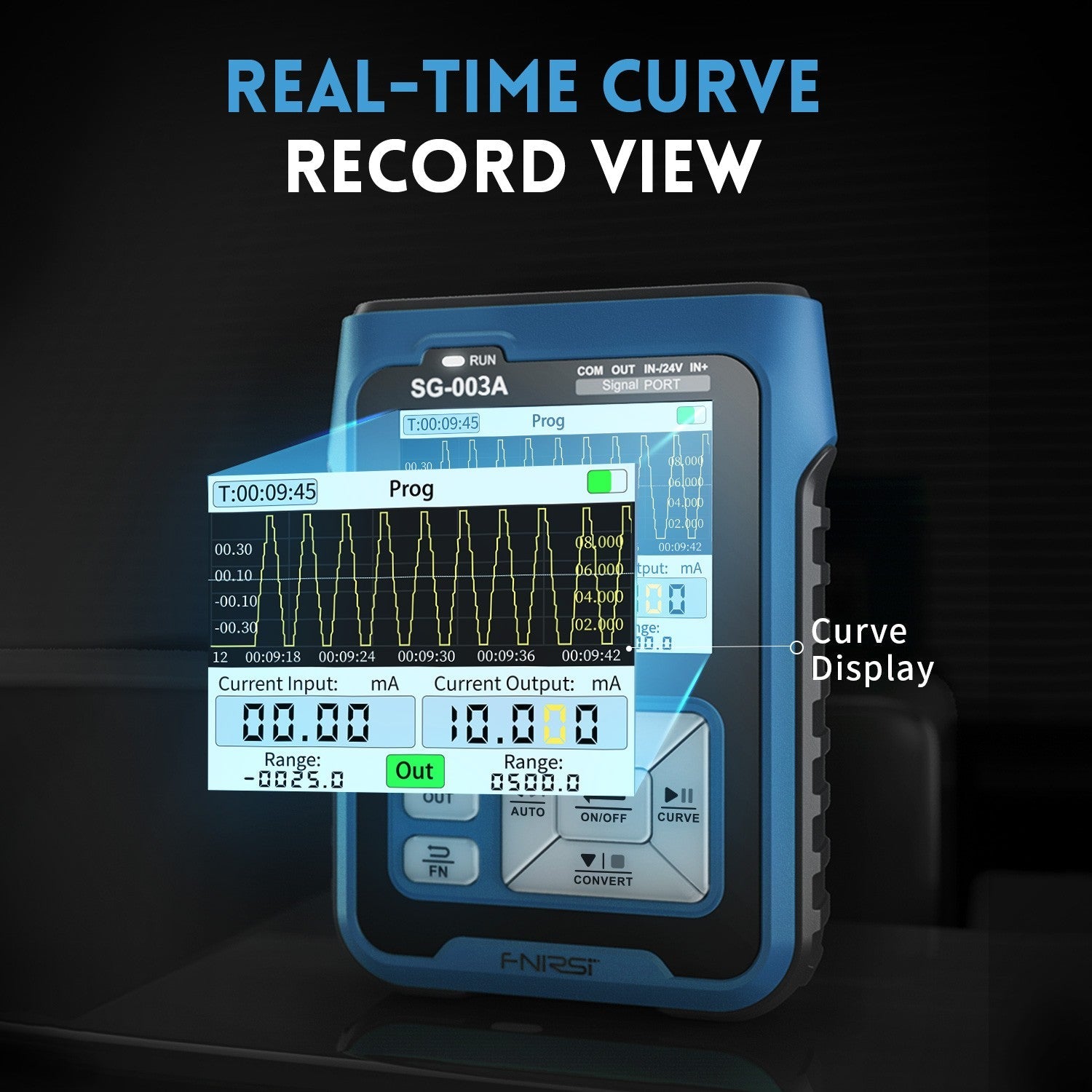

- Displays input and output signal trends with adjustable sampling. Automatically adjusts curve within specified range over time.
- 3000mA lithium battery, fully charged in 4-6 hours, lasts 26 hours.
- FNIRSI SG-003A communicates via RS485 with configuration software or PLC.
- Firmware upgrade via USB emulated U disk.
