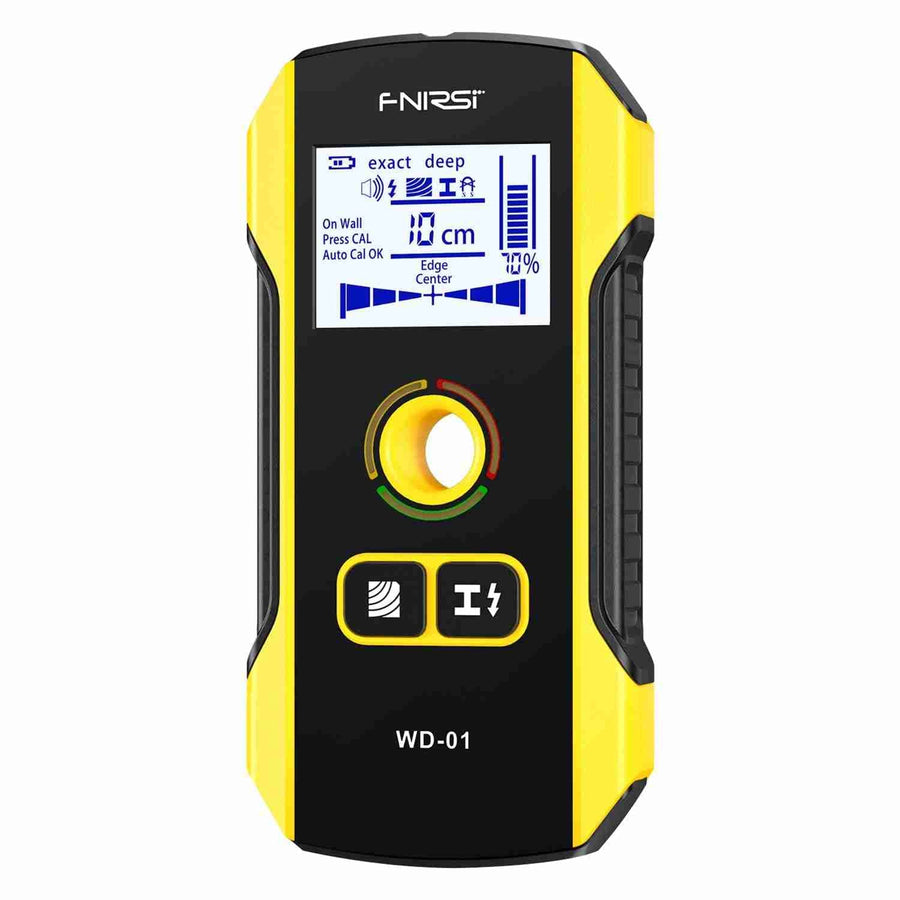

FNIRSI® WD01 Wall Detector Scanner

This detector can detect metals (rebars, copper pipes), and cables hidden in walls, ceilings, and floors; as well as wood beams, metals, and cables beneath gypsum boards.

1. Metal detection: Magnetic metals (rebar, iron) and non-magnetic metals (wires, copper pipes).

2. Cable detection: Live cables.

3. Wood detection: Foreign objects behind gypsum board walls, exposed wooden floors, plywood, and coated wood walls.

Note: Cannot detect concrete, mortar, bulk objects, bricks, carpets, foil-faced materials, metal surfaces, tiles, glass, etc.

- Wood: 38mm (depth mode); 20mm (precision mode)

- Live cables: 40mm

- Non-magnetic metal (copper): 100mm

- Magnetic metal: 120mm

- Anti-interference high-performance module for precise detection.

- Detection alerts: Indicator lights, peak beeps, screen prompts.

- Real-time adjustable sensitivity (WD-01 excluded): Manual adjustment.

- Battery capacity: Built-in 3.7V, 300mAh lithium battery, approximately 2 hours of working time.

- Automatic shutdown: Shuts down after 5 minutes of inactivity.

- Type-C charging port

- 7.99 x 3.9 x 1.73 inches; ‎4.2 ounces

- 20.29 x 9.91 x 4.39 cm; 0.119 kg

WD-01:

- 1 x WD-01 Wall Detector Scanner

- 1 x Manual

- 1 x Storage Bag

- Use a Type-C charger with 5V output and ≥500mA current for safe charging.
- Ensure the detection area is free of moisture before starting the detector; dry it if necessary.
- Prevent moisture from entering the detector and avoid direct sunlight exposure.
- Wait for the detector's temperature to stabilize if it has been exposed to significant temperature differences.
- Avoid using microwave ovens or other emission devices near the detector.
- Environmental factors like proximity to machines producing strong magnetic or electromagnetic fields, moisture, metal-containing building materials, aluminum-coated insulation, conductive wallpaper, and carpets can affect detection results.
- Always refer to relevant instructions (e.g., architectural drawings) before drilling or sawing walls, ceilings, or floors.
- Turn off power, gas, and water supply before drilling or nailing through walls with live wires.
- Remove jewelry like rings or watches when using the detector to avoid interference.
- Move the detector evenly on the wall surface without lifting or changing pressure.
- Maintain constant contact between the tool and the wall surface during scanning.
- Ensure fingers holding the tool do not touch the scanned surface.
- Avoid touching the detector or scanned surface with other body parts.
- Scan slowly for maximum accuracy and sensitivity.
