Highlights
High-Precision and Wide-Range Measurement: Offers 10,000-count True RMS with support for up to 750V voltage and 600A current, making it suitable for various applications.
Advanced Display and Interface: Equipped with a 2.0-inch 240 × 320 full-color TFT screen featuring an intuitive UI, adjustable brightness, and data curve visualization for clear and convenient readings.
Versatile Functionality: Supports three measurement modes (routine, waveform, and power), along with NCV non-contact voltage detection and zero/fire line identification for enhanced usability.
Reliable Power and Efficiency: Powered by a long-lasting 3.7V 1500mAh battery with intelligent auto power-off to extend battery life.
User-Friendly Features: Includes a flashlight, screen backlight, and data-saving options, making it a practical and reliable tool for various scenarios.

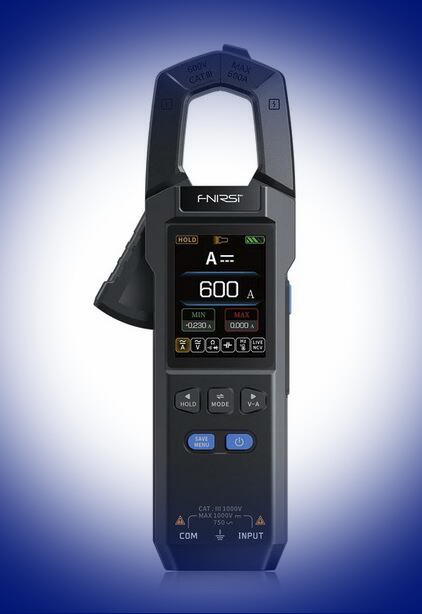

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle.
Features
- High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
- Wide Measurement Range: Supports up to 750V voltage and 600A current.
- High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
- Intuitive Interface: New UI with data curve display for easy reading at a glance.
- Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
- NCV Function: Non-contact voltage measurement and zero/fire line identification.
- Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
- Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
- Type-C Interface: Convenient charging and data transmission via Type-C port.
- Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
- Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
- Temperature Unit Switching: Easily switch between temperature units (℃/℉).
- Adjustable Brightness: Screen brightness is adjustable for various environments.
- Firmware Upgradeable: Supports firmware updates to enhance functionality.
Specifications
Brand
FNIRSI
Model
DMC-100
Screen
2.0'' TFT color screen
Screen Resolution
240*320 pixels
Battery
3.7V, 1500mAh Lithium Battery
Charging Specification
USB Type-C, 5V/1A
Maximum Jaws Size
25mm
Temperature Unit
℃/℉
Product Size
193x74x32mm
Product Weight
194g
DC Voltage
9.999V / 99.99V / 999.9V
AC Voltage
9.999V / 99.99V / 750.0V
DC Current & AC Current
99.99A / 600.0A
Resistance
99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
Capacitance
9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Frequency
9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature
-55~1300℃ / -67~2372℉
Diode Measurement
Support
On-off Test
Support
Non-Contact Voltage Check (NCV)
Support
Zero Fire Wire Check
Support
Measuring Mode
1. General Measurement
2. Waveform Display
3. Power Measurement
2. Waveform Display
3. Power Measurement
Measurement Gear
Manual Adjustment
Torch
Support
Data Zeroing
Support
Maximum/Minimum Value
Support
Waveform Display
Support
Power Calculation
Support
Data Hold
Support
Data Storage and Viewing
Up to 30 groups of data
Language
Chinese / English
Brightness Adjustment
10-speed adjustment
Auto Power Off
OFF / 5min / 15min / 30min
Firmware Upgrade
Support
AC Current
4A / 40A / 600A
Resistance
400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ

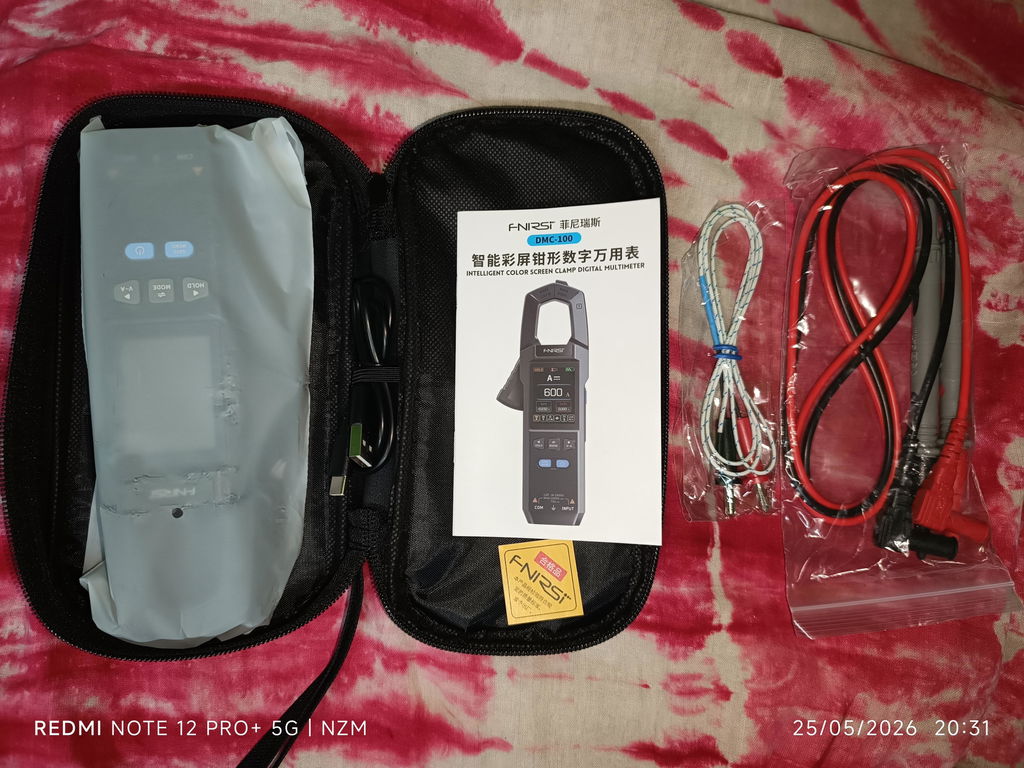

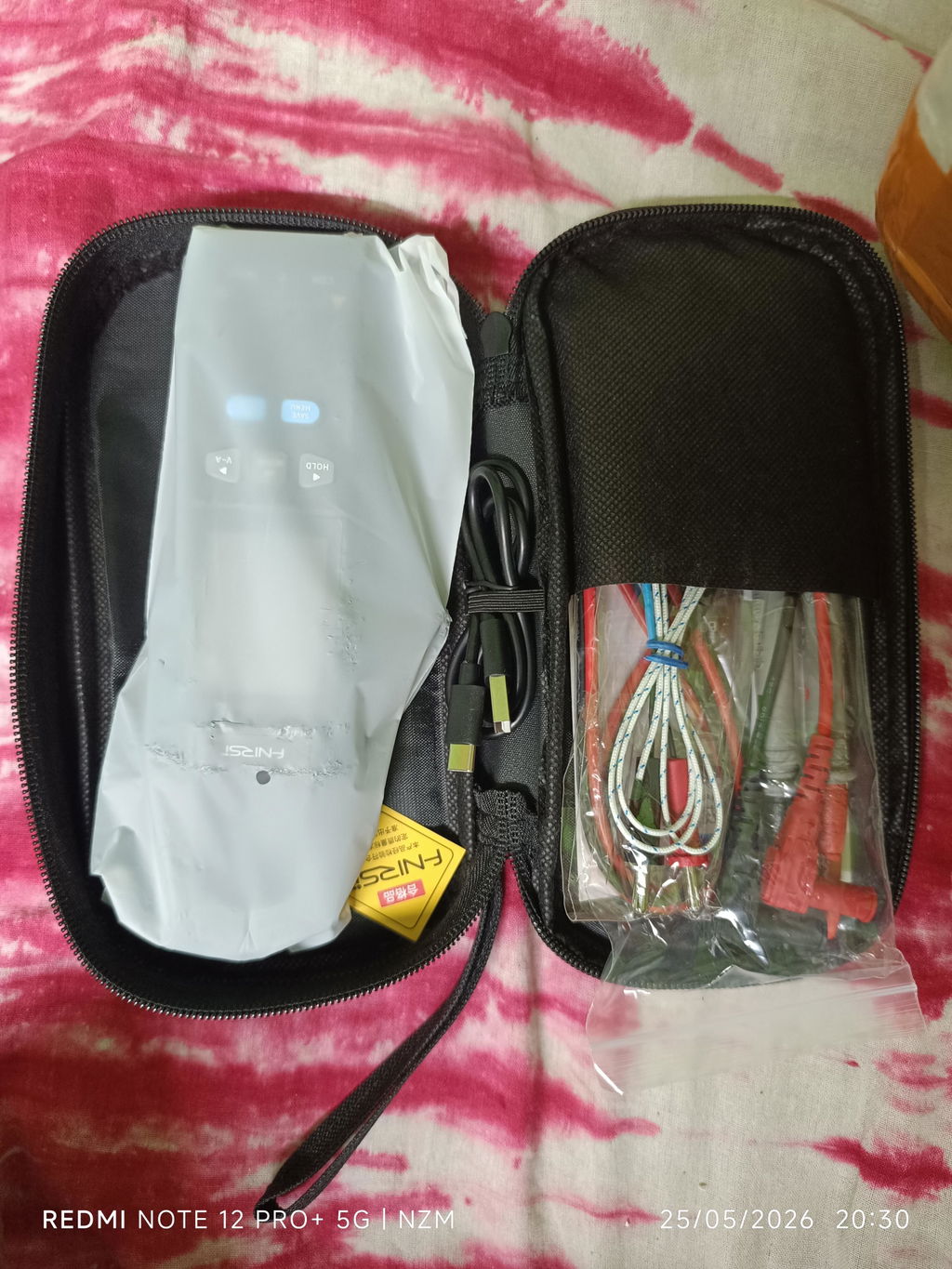

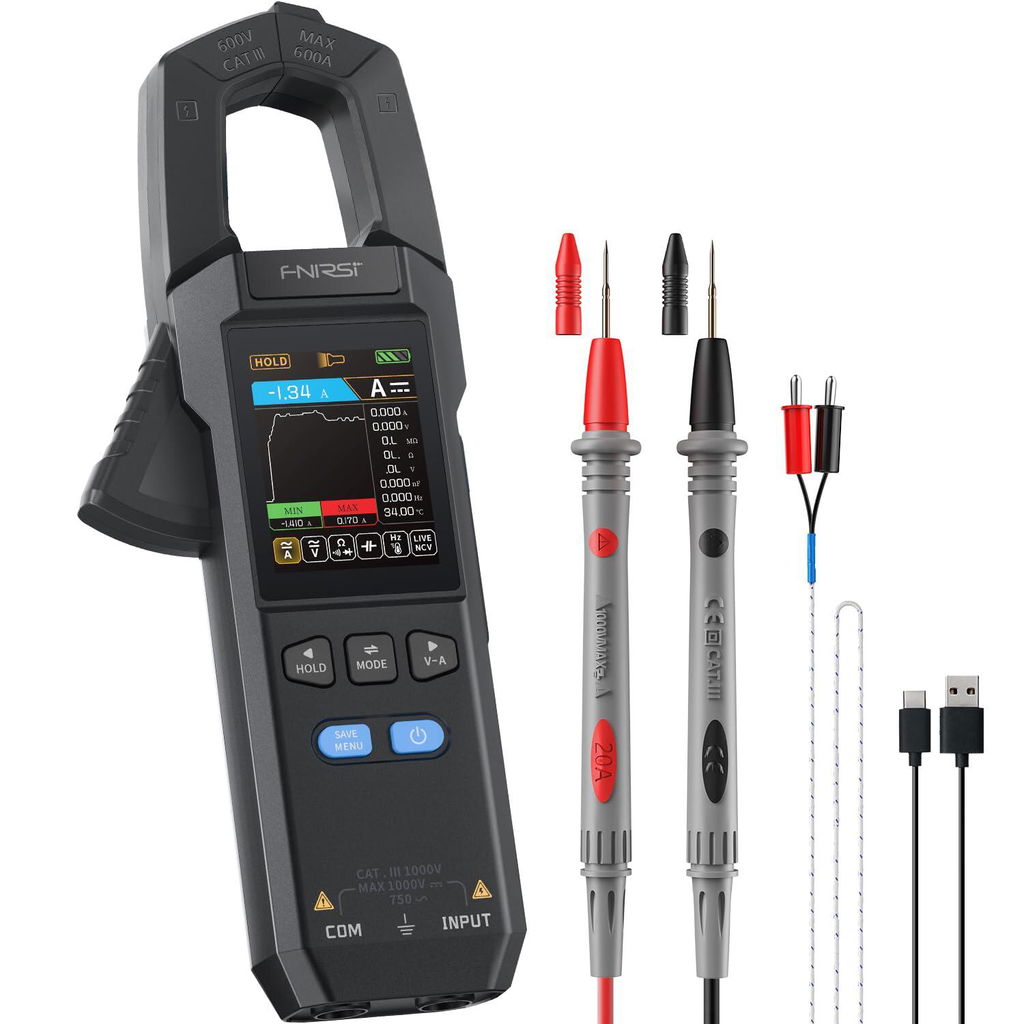

Product List:
1. DMC-100 Host
2. Type-C Charging Cable
3. Multimeter Pen
4. Temperture Probe
5. User Manual
6. Packaging Box
1. DMC-100 Host
2. Type-C Charging Cable
3. Multimeter Pen
4. Temperture Probe
5. User Manual
6. Packaging Box
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
