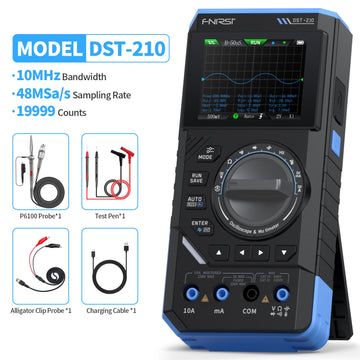

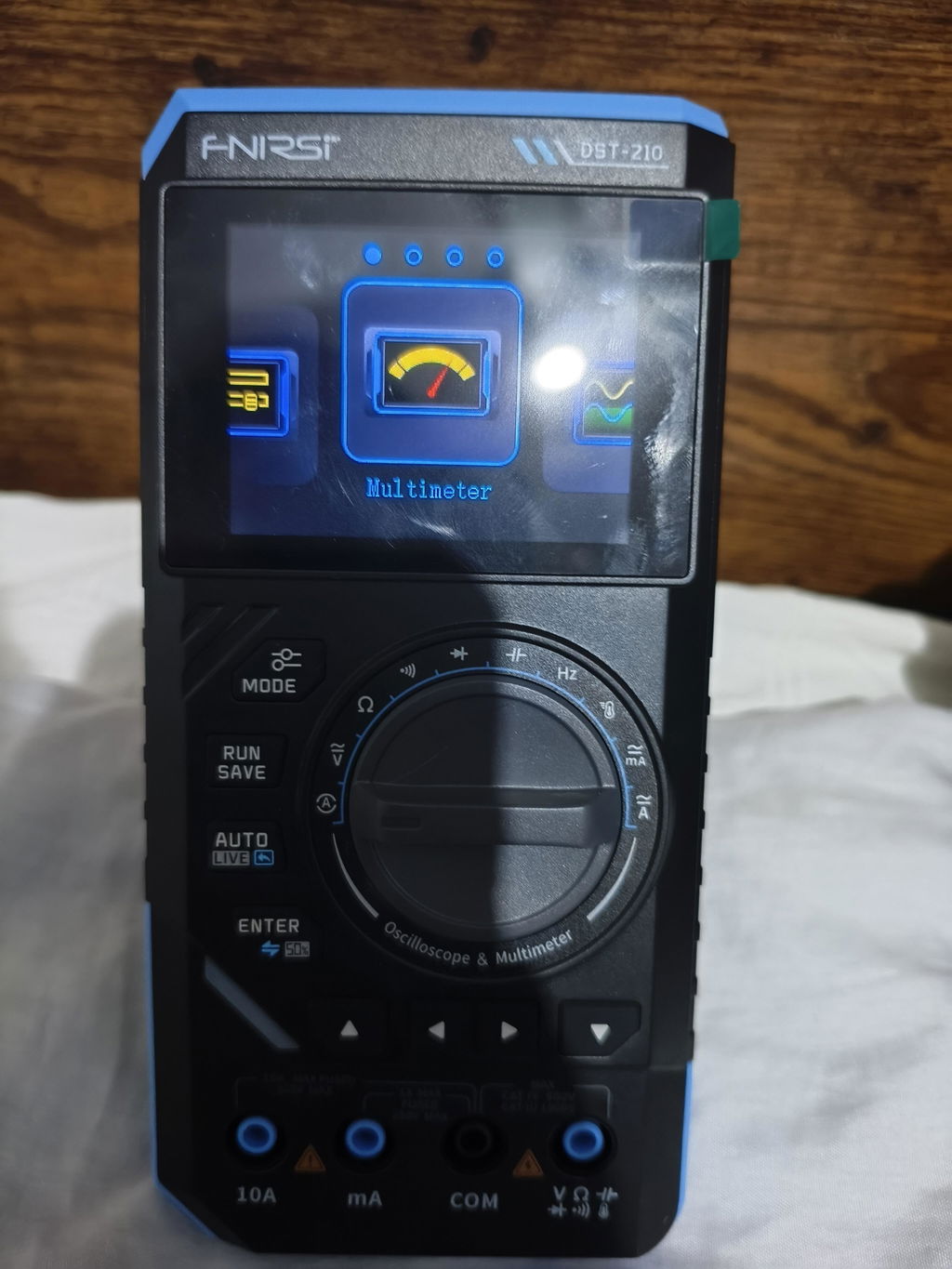

The DST-201/DST-210 is a versatile multifunction tester developed by FNIRSI, tailored for electronics repair and R&D. This all-in-one device integrates multiple essential testing functions, addressing a broad spectrum of measurement requirements.
Key Features:
-
High-precision oscilloscope function:
FNIRSI DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, ensuring waveform analysis. It is equipped with voltage protection up to ±400V, suitable for a wide range of applications. -
Multi-function signal generator function:
Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V. The frequency, amplitude and duty cycle can all be fine-tuned to meet various testing needs. -
Comprehensive multimeter function:
FNIRSI DST-201/210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements. -
Overload protection and portable design:
The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use. -
User-friendly and multifunctional:
FNIRSI DST-201/210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists and home users.
Specifications
Basic Parameters:
Model
DST-210 / DST-201
Screen Material
2.8 inches TFT Colorful Screen
Backlight
Brightness adjustable
Power Supply
TYPE-C (5V/1A)
Battery
3000mAh
Languages
中文、English
Product Size
≈177.43×87.47×34.5mm
Bare Weight
≈300g
Oscilloscope Parameters:
Sampling Rate
DST-210: 48MSa/s
DST-201: 5MSa/s
DST-201: 5MSa/s
Analog Bandwidth
DST-210: 10MHz
DST-201: 1MHz
DST-201: 1MHz
Input Impedance
1MΩ
Coupling Mode
AC/DC
Test Voltage Range
1:1 probe: 80Vpp (+40V)
10:1 probe: 800Vpp (+400V)
10:1 probe: 800Vpp (+400V)
Vertical Sensitivity
10mV/div ~ 10V/div(x1)
Vertical Displacement
Adjustable with indicators
Horizontal Time Base
DST-210: 50ns~20s
DST-201: 500ns~20s
DST-201: 500ns~20s
Trigger Mode
Auto / Normal / Single
Trigger Type
Rising Edge & Falling Edge
Trigger Level
Adjustable with indicators
Waveform Freeze
Support(HOLD function)
Auto Measurement
Max, Min, Avg(Vavg), RMS, VPP, Freq, Period, Duty Cycle
Multimeter Parameters:
DC Voltage
1.9999V / 19.999V / 199.99V / 1000V
AC Voltage
1.9999V / 19.999V / 199.99V / 750.0V
DC Current
19.999mA / 199.99mA / 1.9999A / 9.999A
AC Current
19.999mA / 199.99mA / 1.9999A / 9.999A
Resistance
19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
1.9999KΩ / 199.99Ω
1.9999KΩ / 199.99Ω
Capacitance
999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF
9.999mF / 99.99mF
9.999mF / 99.99mF
Frequency
9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature
(-55~1300℃) / (-67~2372℉）
Diode / Continuity
Support
Single Probe AC Voltage Measurement (LIVE)
Support
Signal Generator Parameters:
Output Waveform
Support 13 types of waveform output
Waveform Frequency
DST-210: 0-50KHz
DST-201: 0-10KHz
DST-201: 0-10KHz
Square Duty Cycle
0-100%, Square and Sawtooth are adjustable
Waveform Amplitude
0.1V-3.0V
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
