Highlights
✦ Upgraded Version: Oscilloscope and DDS signal generator dual mode with 1 MHz High bandwidth, 5MS/s high sampling rate, 500ns-20S time base range, and can measure voltages up to 400V.

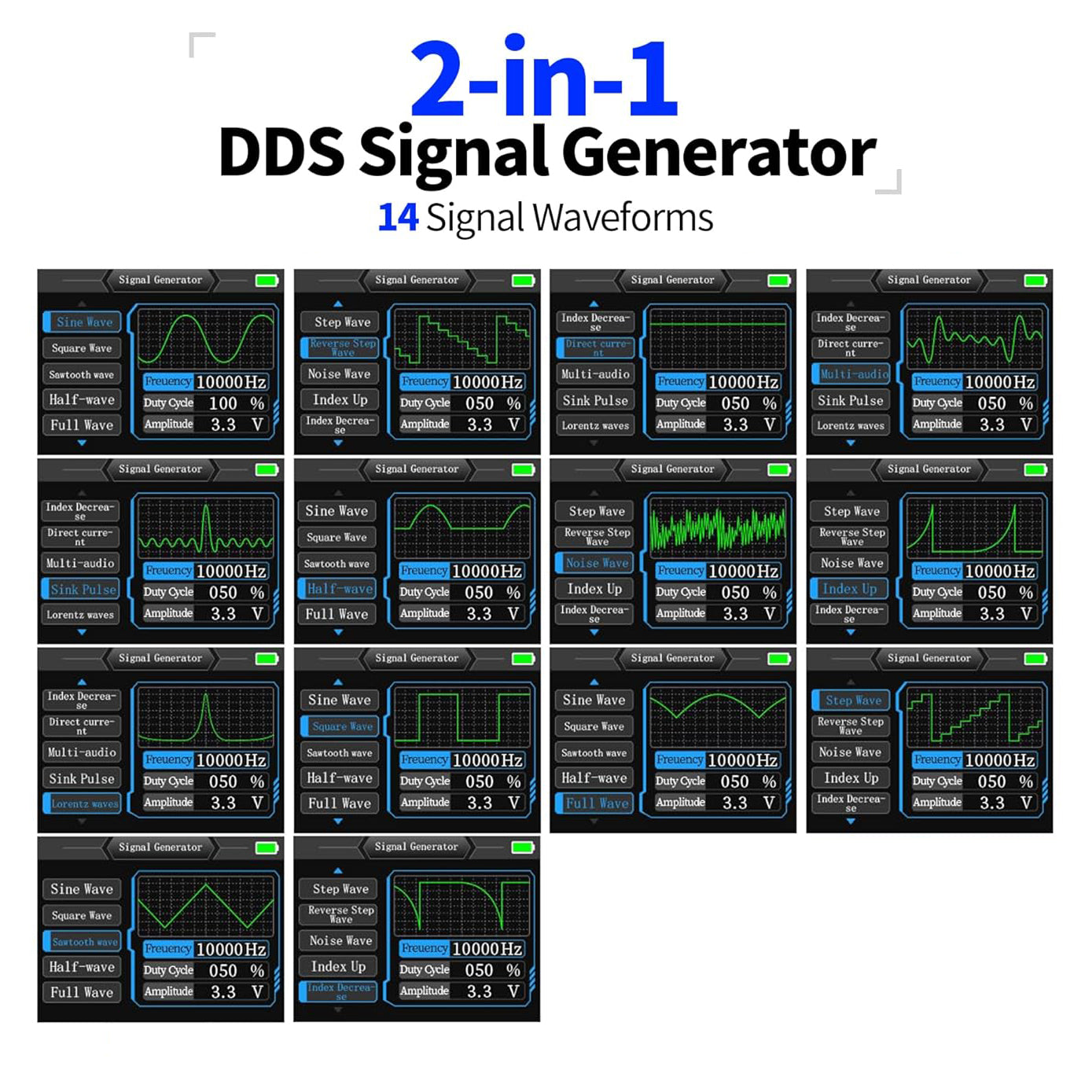

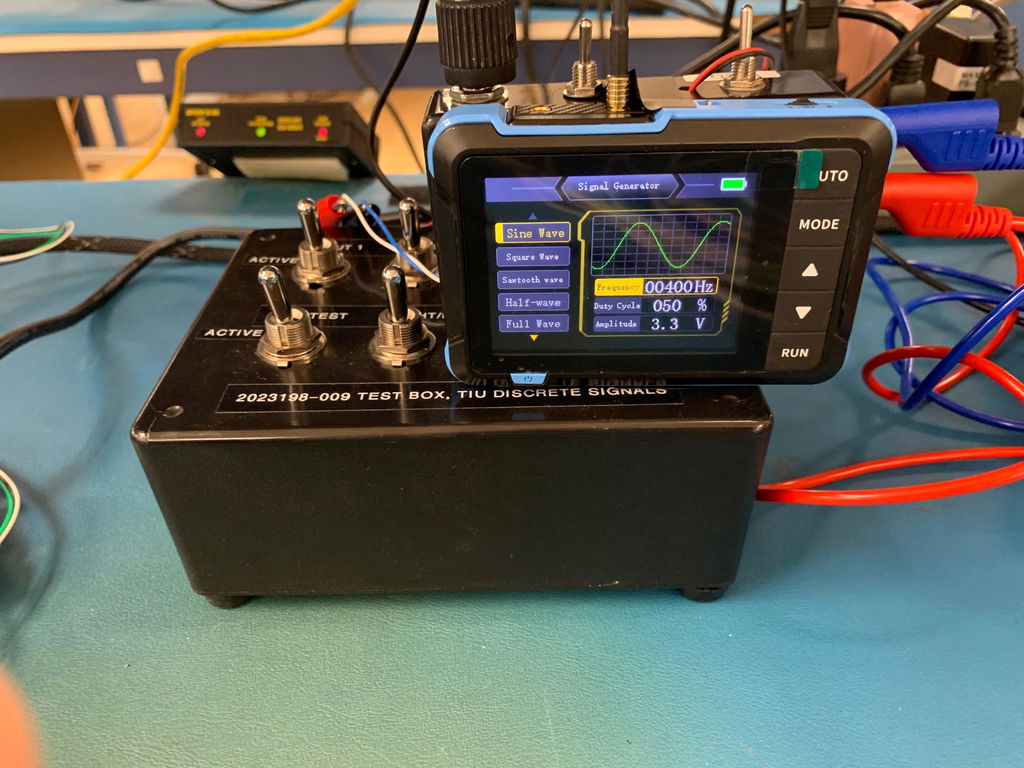

✦ DDS Signal Generator: The DDS signal generator can output 14 waveforms, and the maximum waveform output frequency is up to 10KHz.

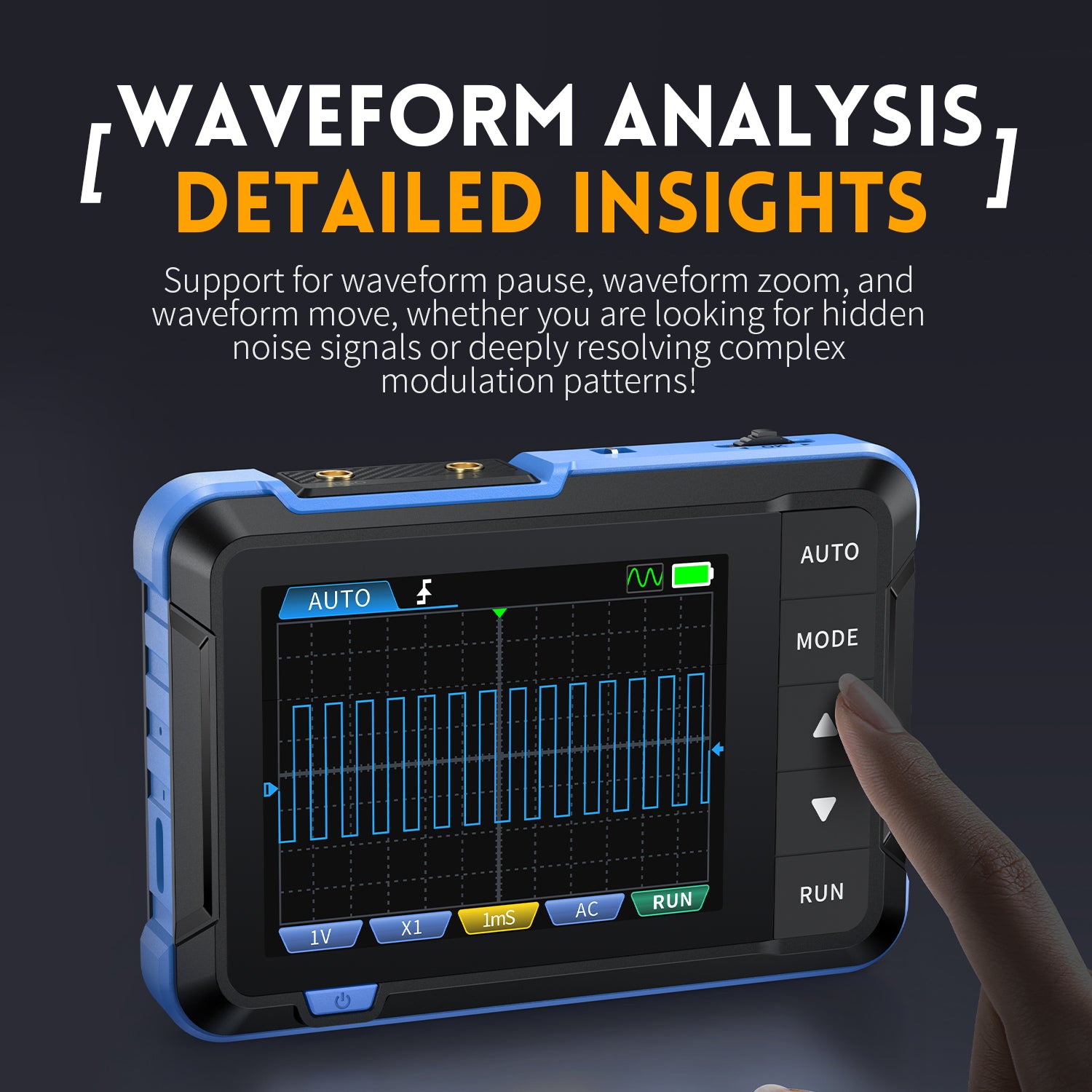

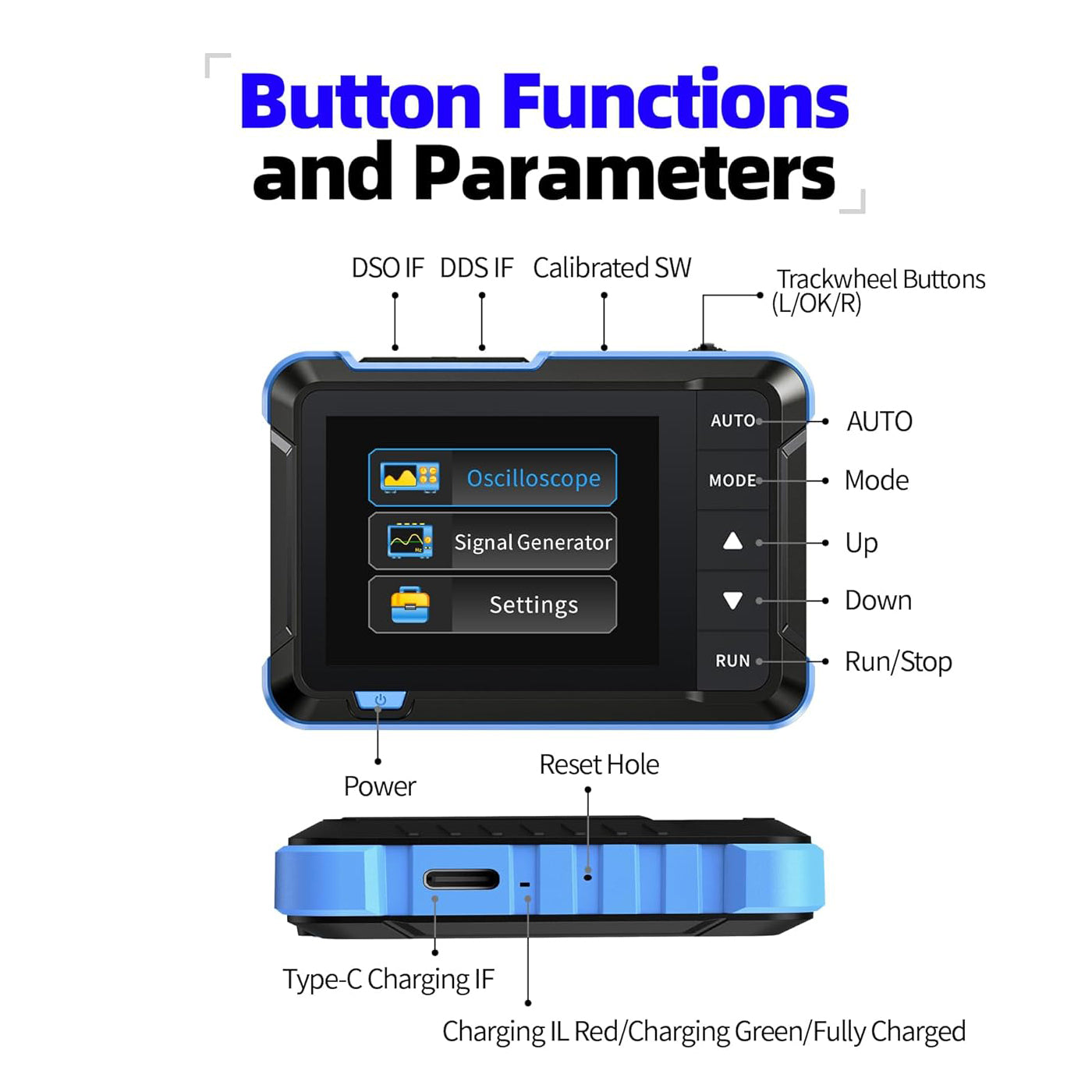

✦ Easy Measurement: The handheld oscilloscope is equipped with intelligent one-click automatic configuration function. Long press the AUTO button to quickly calibrate the baseline and display the measurement waveform without complicated debugging.
✦ Professional Design: The automotive oscilloscope is equipped with a 2.8-inch High-definition LCD display, 320*240 resolution, Auto/Normal/Single trigger function, suitable for periodic analog signals and non-periodic digital signals.

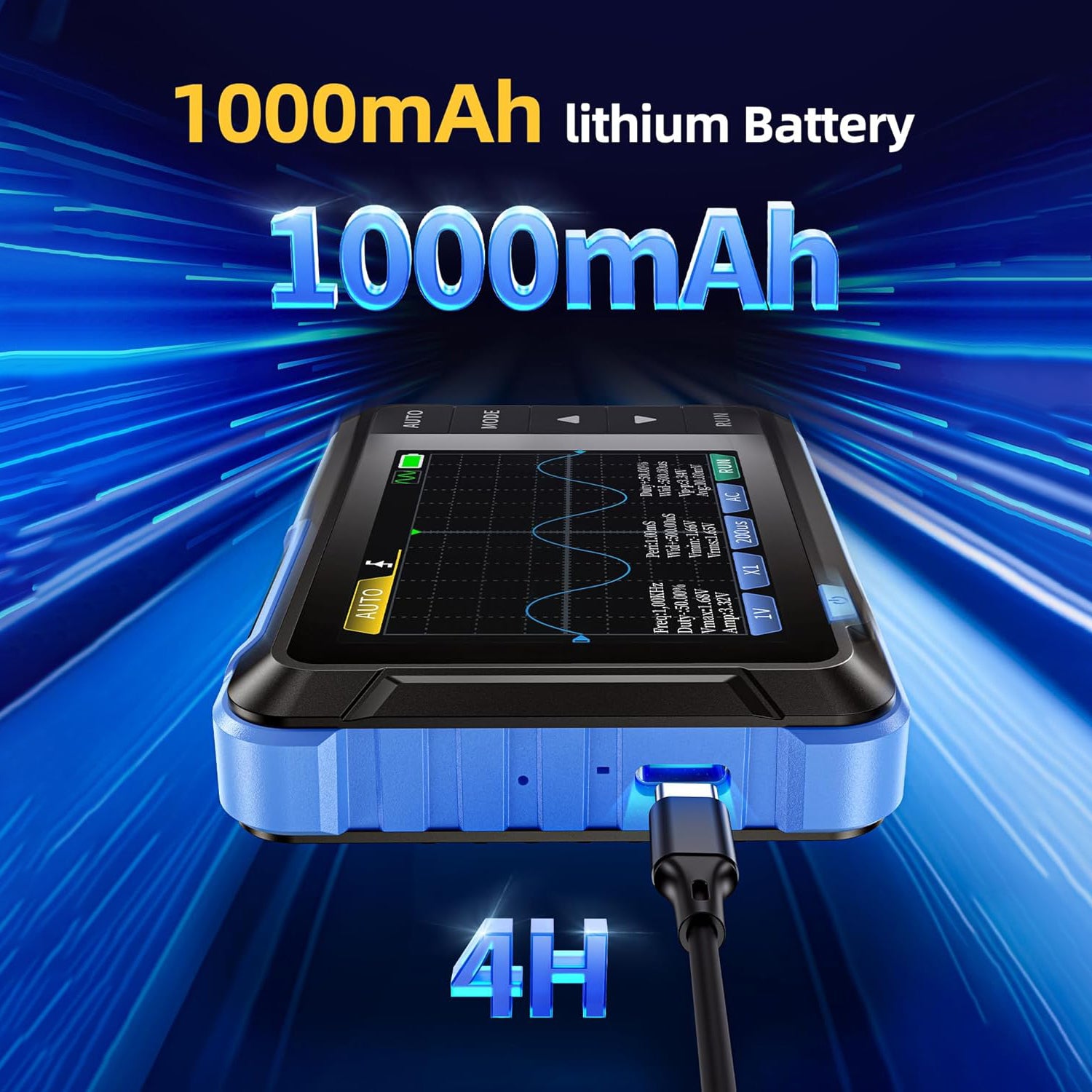

✦ Rechargeable lithium battery: The portable oscilloscope has a built-in 1000 mAh high-quality lithium battery, supports Type-C interface charging, and has a battery life of about 4 hours.
The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz). Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
Features
- Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
- DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range.
- Signal Generator: 10KHz
- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Signal Type Support: Periodic analog signals and non-periodic digital signals.
- 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.
- One-Click AUTO Mode: Effortlessly display waveforms with minimal input.
- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.
* Basic Parameters *
Brand
FNIRSI
Model
DSO-153
Display
2.8 Inches / PPI:320*240
USB Charging
5V/1A
Lithium Battery Capacity
1000mAh
Size
99x68.3x19.5mm
Weight
100g
* Mini Oscilloscope *
Channel
1
Sampling Rate
5MS/s
Bandwidth
1MHz
Vertical Sensitivity
10mV/Div-20V/Div (Progress according to the 1-2-5 way)
Time Base Range
500ns/Div-20s/Div (Progress according to the 1-2-5 way)
Voltage Range
X1:±40V (Vpp:80V)
X10:±400V (Vpp:800V)
X10:±400V (Vpp:800V)
Trigger Mode
Auto / Normal / Single
Trigger Edge
Rising edge / Falling edge
Coupling
AC/DC
* Signal Generator *
Frequency
0-10KHz
Duty Cycle
0-100% (rectangular and sawtooth waves)
Amplitude
0.1-3.3V
Waveforms
Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
◈ The size and weight are both manually measured, with slight errors, please refer to the actual product for accuracy.
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
