Highlights
✦ High Recording Resolution: Supports 4K (3840*2160) recording for detailed video quality, with compatibility for multiple resolutions (including 2K, 1080FHD, 720P, VGA and QVGA).
✦ Impressive Photography Capability: Camera resolution reaches up to 36MP, ideal for capturing high-quality still images.
✦ Excellent Low-Light Performance: Low light or daytime observation range extends from 2m to infinity, with a maximum night vision distance of 300m using 850nm infrared light.
✦ Versatile White Balance Settings: Offers both automatic and manual white balance options (like daylight, cloudy, tungsten, and fluorescent), ensuring optimal image quality in various lighting conditions.
✦ Flexible Storage and Charging: Equipped with a 32G TF memory card for storage and powered by a 18650 internal battery, rechargeable via a 5V/1A TYPEC port for convenience.
✦ User-Friendly Interface: Features multi-language support (including 8 languages) and adjustable LCD brightness, catering to diverse user needs.

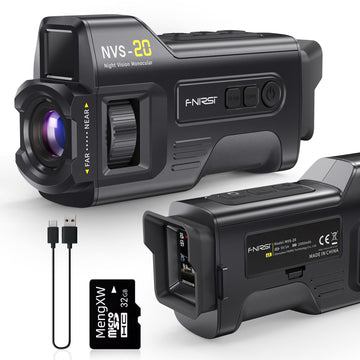

FNIRSI® NVS-20 is a monocular night vision instrument used for observing objects in pitch black or weak light. The observation distance in weak light is not limited, and can reach 300 meters in full darkness environments. Equipped with USB interface and TF card slot, supporting firmware updates and shooting storage. Fully functional, this color screen can be used normally during the day and night, with functions such as taking photos, shooting, playback, and electronic zoom up to 6x. This device is the best auxiliary tool for human night vision extension.
Features
- Drawtube: Monocular Night Vision
- Complete Dark Viewing Distance 300M
- Adapts to Day and Night
- Supports Photography Video
- 6x Electronic Zoom
- Handheld-Design, Compact and Portable
- Maximum 4K Video Resolution
- Supports File Export
- Voltage: 3.7V 18650 Battery
- Screen: 1.54 High-Definition IPS
- Charging: 5V/1A TypeC
- Temperature: 5~40℃
- Humidity: 0-80%
- Objective Lens Aperture: 25mm
- Weak Light Observation Distance: 2m-∞
- Observation Distance of All Black Without Light: 300m(Max)
Product Parameters
Brand
FNIRSI
Model
NVS-20
Drawtube
Monocular
Electronic Zoom
6x
Objective Lens Diameter
25mm
Low Light or Daytime Observation Distance
2m~∞
Full Black Observation Distance
300m(max)
Video Resolution
4K(3840*2160) / 2K(2560*1440) / 1080FHD(1920*1080) / 720P(1280*720) / VGA(640*480) / QVGA(320*240)
Photo Resolution
36MP / 32MP / 30MP / 24MP / 20MP / 16MP / 12MP / 10MP / 8MP / 5MP / 3MP / VGA
IR Wavelength
850nm
Water Resistance Level
IPX6
White Balance
Automatic, Daylight, Cloudy, Tungsten Filament, Fluorescent
ISO
Auto, 100, 200, 400, 800
LCD Brightness Adjustment
High, medium, and low levels
Light Source Frequency
50Hz/60Hz
Storage
32G TF memory card
Language Setting
Chinese / Traditional / English / Japanese / Italian / French / German / Russian / Spanish / Portuguese
Voltage
3.7V
Power Supply
18650 internal battery
Charging
5V/1A TYPE-C
Screen
1.54 inch HD IPS
Temperature
-5~40°C
Humidity
0-80%
Size
152x42x82mm
Weight
about 240g
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
Copyrights
The product specifications are subject to change without notice, allfinal interpretation rights were reserved by FNIRSI Technology Co., Ltd, All trademarks, product images，technical parameters are properties of FNIRSI Technology Co.. Ltd. All rights reserved.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from fnirsi.com), lifetime technique support by FNIRSI.
