Highlights

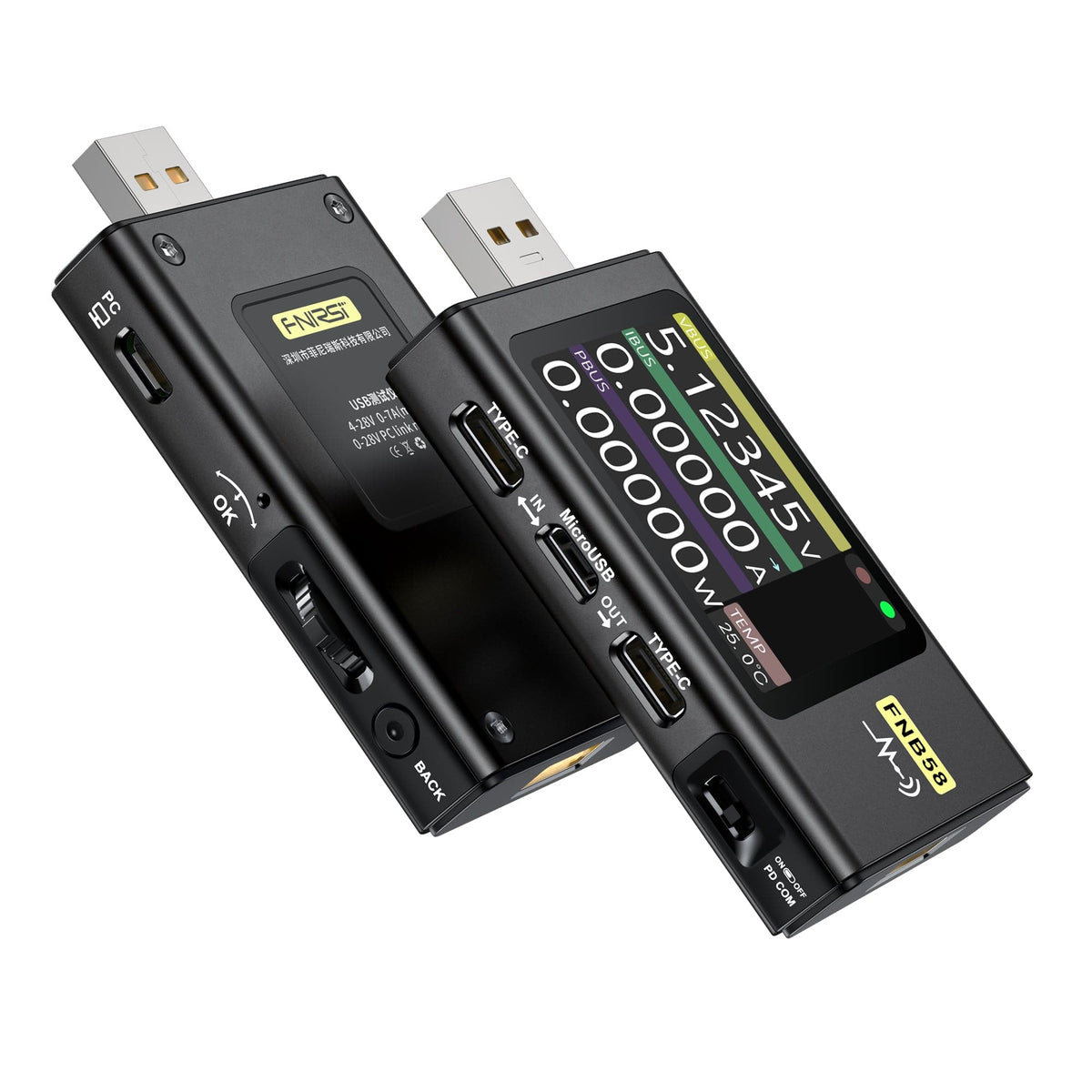

✦ Updated USB Tester: FNIRSI FNB58 has a 2.0-inch TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It is a USB voltage andcurrent detection meter and a mobile communication terminal fast charging trigger with gravity sensor.
✦ Multifunction USB Digital Tester: FNB58 uses external 16-bit ADC, PD protocol physical chip. FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers.
✦ Fast Charge Protocol Trigger Detection: FNB58 supports QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, VOOC/WARP, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring. MTK-PE automatic detection. Support QC2.O->PD2.0 protocol conversion.
✦ Parameter Recording: The highest six-digit display of voltage, current and power. 10 sets of switchable capacity, power etc. Support low-speed waveform drawing, 2 sps-100 sps sampling rate. Support high-speed ripple drawing, up to 4 M sps sampling rate
✦ USB tester detection function: The resistance measurement of the wire by the differential pressure method. E-Marker Cable chip reading. DASH Cable data reading. Record of startup time. Onboard temperature measurement. PD monitor. Analog DASH cable.
✦ Note: In order to respond to the environmental protection policy and reduce the use of paper, FNB58 does not come with paper manuals. You can visit the website of FNIRSI on the box to download the manuals, including product update firmware, APP, etc.
The FNB58 USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks; it can be used to measure the charging power of mobile phones and the input and output of mobile power supplies; it can be used to test the fast charging protocol of chargers.
Specifications
Brand
FNIRSI
Model
FNB58
Monitor Voltage
4~28V
Monitor Current
0~7A
Monitor Power
0~140W
D+/D- Voltage
0~3.3V
Load Equivalent Intemal Resistance
0~9999.9Ω
Equipment Temperature:
°C/°F
Capacity
0~9999.99Ah
Energy Used
0~9999.99Wh
Cable Resistance
0~9999.9Ω
Equipmnt Running Time
99days 23:59:59
Record Time
99days 23:59:59
Using Environment and Precautions
The device should be stored in a soft case, and the operating environment should be at a temperature of -5~40℃, and the relative humidity should not exceed 80%.
The device should be stored in a clean and dry place to avoid moisture, mold, heavy pressure, mechanical damage,humidity and direct sunlight.
Avoid using in the rain or fog, avoid dropping or shocking.
When the screen on the LCD does not light up, it indicates that the voltage is too low, and it needs to be charged in time.
Copyrights
The product specifications are subject to change without notice, allfinal interpretation rights were reserved by FNIRSI Technology Co., Ltd, All trademarks, product images，technical parameters are properties of FNIRSI Technology Co.. Ltd. All rights reserved.
Warranty
30-Day return and refund guarantee (Refer to our Refund Policy), 2-year warranty (only available for orders purchased directly from fnirsi.com), lifetime technique support by FNIRSI.
Please feel free to reach us with any concerns:
Email: service@fnirsi.com / info@fnirsi.com
We strive to reply to you within 24 hours.
FNIRSI has started researching and development manufacturer of quality optical products including Golf rangefinder, laser,measure device and binoculars since 2016.
Focus on the development,researching, and manufacturing for over 8 years.
We are committed to delivering premium products and exceptional customer service, striving to be your most reliable and intelligent assistant.
At Fnirsi, we are committed to providing our customers with the best value for their purchases. To ensure you always get the best price, we offer a 30-day price guarantee on all products purchased directly from fnirsi.com. This policy aims to give you confidence and peace of mind when shopping with us.
What is the 30-Day Price Guarantee?
Our 30-day price guarantee means that if you purchase a product from fnirsi.com and the price of that product drops within 30 days of your purchase date, you are eligible for a refund of the difference in price.
How Does the Price Guarantee Apply?
- Eligibility: The price guarantee applies only to purchases made on fnirsi.com. Products purchased from other retailers or third-party sellers are not eligible.
- Timeframe: The price drop must occur within 30 days of your original purchase date.
- Product Match: The price guarantee applies to the same product (identical model, specifications, and condition).
How to Apply for a Price Difference Refund
If you notice that the price of a product you purchased from fnirsi.com has dropped within 30 days, follow these steps to apply for a refund of the price difference:
- Documentation: Prepare your order number and proof of the price drop (such as a screenshot and link to the product page showing the reduced price).
- Contact Us: Reach out to our customer support team at info@fnirsi.com .Include your order number, proof of the price drop, and a brief explanation of your request.
- Verification: Our team will verify the price drop and your purchase details.
- Refund Process: Once verified, we will process the refund for the price difference to your original method of payment. It typically takes 1-3 business days for you to receive the refund.
At Fnirsi, we strive to provide our customers with high-quality products and exceptional customer service. Our 30-day price guarantee is just one of the ways we ensure you get the best value for your investment. Shop confidently with Fnirsi, knowing that you are always getting the best deal available.
Thank you for choosing Fnirsi. If you have any questions or need further assistance, please do not hesitate to contact our customer support team at info@fnirsi.com.
Customer Reviews
Based on 210 reviews
88%
(185)
8%
(17)
3%
(7)
0%
(1)
0%
(0)
M
Tester itself very informative and useful, of a good quality. Main issue for me - can't connect to Poco phone via Bluetooth. Also would be great to have direct links from the product page to manual, tools and firmware files.
R
These days everyone can clone and create hardware, but most important thing is the software and support, that's what charger-lab is good at it, polishing and updating software.
Fnirsi guys should work on pc software's user interface and add new abilities.
M
The device itself is well made and beautiful to look at. It is very functional and intuitive in many aspects of its design. I look forward to many years of use with this tool. I did find the ordering process lacked sufficient communications as there was a significant lag of approx. 10 days from the time I orderred the device to the time it actually shipped and when it shipped the notification did not really tie back to my order. As I had been ordering a lot of things around the time I did not know if it had been shipped, until it was delivered. This is not a fault of the product though. The packaging of the product is fantastic, and I am really pleased I purchased this item.
F
I have just received the FNB58.
The installed FW is 3 version old. To update it I need the USB App. Now, I have been searching for 2 hours, but I cannot find this app. I'll spend some more time searching, and if I cannot find it I'll send it back. I'll change my review if I fix this issue
UPDATE: PC App and FW installed
1) browse fnirisi.com + Download + Firmware + scroll down to the USB Tester section
2) click to FNB58_V0.68.zip + extract the directory
3) from the USB Tester, download also the USB_Tester_App_PC_Software.txt
4) open the file and copy the link with “PC Software”, and download the zip file, open it and extract the directory + run UsbMeter.exe. A small mostly black empty window appears in your screen.
5) keep the FNB58 powered off and disconnected. Press the wheel button on the device and keep it pressed while you connect the micro-USB marked as PC connection
6) at this point the App on your pc should show a populated window. Select the System tab (it is up on the left)
7) on the middle right there is Folder icon, click it and go to the dir where you saved the Firmware file. The box below should show that the file is valid
8) click the refresh icon on the bottom right. The firmware upgrade should start. Follow the progress on your device. My first attempt stopped at 6%, I disconnected/reconnected the cable and repeated the process. This time it worked
Fnirisi, better you put this explanation in the manual
