FNIRSI® 1014D Dual Channel Digital Storage Oscilloscope
- Dual Channel
- 2 in 1: Digital Oscilloscope + DDS Function Signal Generator
- 1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
- Complete trigger function (single/normal/automatic).
- Capable of storing up to 1000 customized chopping signals.
- high-voltage protection module.
- One-button AUTO and adaptive trigger (25%, 50%, 75%).
- 7-inch 800*480 resolution high-definition LCD screen.
- Powerful Waveform Picture Manager.
- One-key Screenshot and Saving.
- Cursor measurement function.
- USB Picture Export
- Lissajous Graphic Display & FFT Viewing.
- Ideal for both periodic analog and aperiodic digital signals.
Pairs well with
FNIRSI® 1014D Dual Channel Digital Storage Oscilloscope
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Basic Specifications:
Introduction:
Display and Technology:
Functionality and Features:
Connectivity and Power:
Physical Dimensions:
Package Contents:
Warning Tips:
1. Electrical Safety:Always ensure that the device is used in accordance with electrical safety standards to prevent electric shock or damage to the equipment.
2.High Voltage: Exercise caution when working with high voltage signals. Make sure to use appropriate safety measures and protective gear to avoid injury.
3. Proper Grounding: Ensure that the oscilloscope is properly grounded to prevent electrical hazards and ensure accurate measurements.
4. Overloading: Avoid applying signals that exceed the specified input voltage range to prevent damage to the device.
5. Heat Dissipation: Allow the device to dissipate heat effectively by ensuring proper ventilation around the device during operation.
6. Firmware Updates: When performing firmware updates, ensure that the process is carried out correctly to avoid any potential disruptions or errors in the operation of the device.
7. Battery Usage: Follow the manufacturer's instructions for charging and using the battery to prevent overheating, fire, or explosion hazards.
8. Storage and Transportation: Store and transport the device carefully to prevent physical damage or exposure to extreme environmental conditions.
9. User Manual: Always refer to the user manual for proper usage instructions, safety precautions, and troubleshooting guidelines.
10. Maintenance: Regularly inspect and maintain the device to ensure optimal performance and safety. If any abnormalities are detected, discontinue use and seek professional assistance.

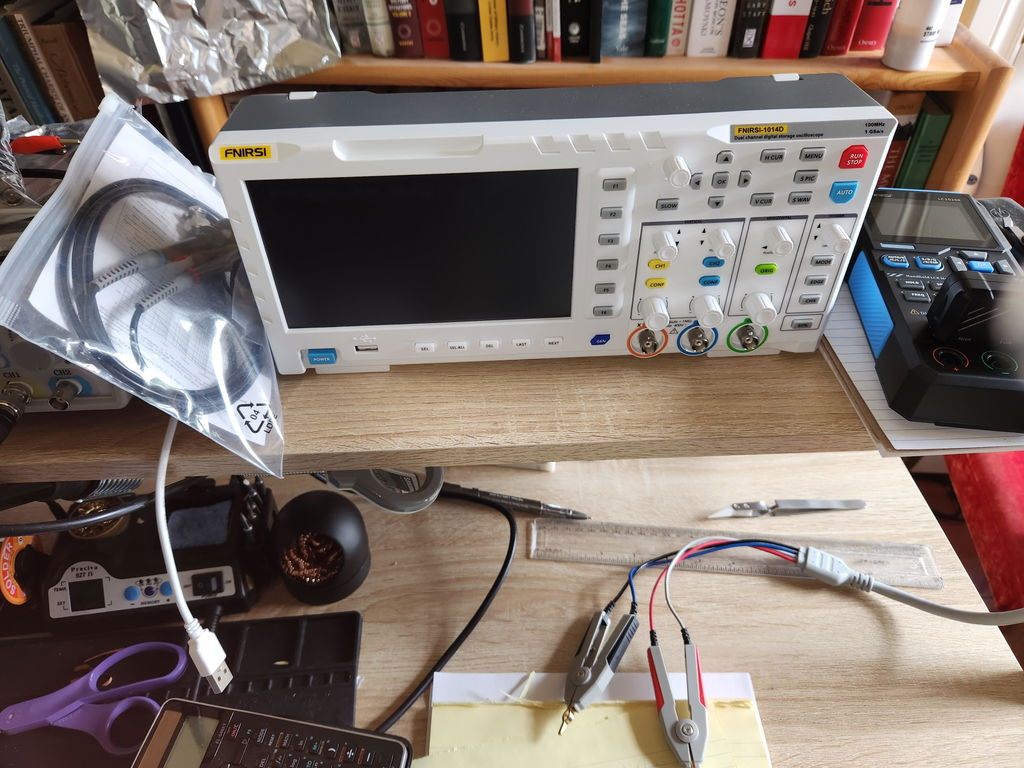

Great kit, works well, very well priced. Highly recommended.
100% OK
Very fast.
Arrived before time I am very happy😊😃
Good instrument but it suffers interference in the measurement.
Thanks for the product well.
Dual Channel
2- IN -1 Digital Oscilloscope + DDS Signal Generator
100X High Voltage Probe
100Mhz Bandwidth 1GSa/s Sampling Rate
FAQs
Please read our FAQs page to find out more.
Why can't the machine turn on after receiving it?
Please check whether the power cord is connected to the oscilloscope and whether the socket is providing power. If both are correct, please try replacing the mobile phone charging adapter and test it again. If the issue persists and the machine is still unable to start, please contact customer service for a replacement.
Why is there no waveform displayed during the test, with only one line remaining on the screen?
Please check whether the pause button has been pressed. If not, press the [Auto] button once. If the issue persists, it may indicate that the signal source has no signal output or there could be a problem with the probe line, such as a short circuit or an open circuit. Please use a multimeter to check whether the probe and signal source are functioning normally.
Why does the waveform run up and down when testing the signal, and why can't I see the waveform, only multiple online and offline beats?
Set the trigger mode to auto and then press the [auto] button once. If the issue persists, the probe's clamp may not be grounded or the probe's clamp end may be open circuit. Please check the probe's integrity with a multimeter.
Why would you measure a battery or other DC voltage without a waveform?
The battery voltage signal is a stable DC signal, devoid of a curved waveform. In DC-coupled mode, adjusting the vertical sensitivity results in an upward or downward offset straight line waveform. However, if AC coupling is employed, regardless of adjustment attempts, no waveform is observed.
Why is the peak value of Vpp more than 600 V, rather than 220 V or 310 V, when measuring the voltage waveform of the city power?
The city power's 220V is a symmetrical AC signal, with the positive peak voltage (maximum value) at +310V and the negative peak voltage (minimum value) at -310V. Therefore, the peak-to-peak value is 620V. The standard measurement parameter is the effective value, often denoted as the RMS value. At this standard, the voltage of 220V is referenced. However, the effective value of municipal voltage can fluctuate from 180V to 260V. Consequently, the peak Vpp falls within the range of 507V to 733V.
